Beyond the Surface: How the Teralytic Smart Soil Probe is Revolutionizing Precision Agriculture

For decades, checking the health of farm soil meant digging up core samples, packing them in bags, and sending them off to a laboratory. Weeks later, a farmer would finally receive a static report. The major flaw? Soil is a living, breathing ecosystem that changes by the hour—not the week.

To bridge this gap between manual guesswork and real-time intelligence, agritech pioneer Teralytic introduced a breakthrough solution: the world's first comprehensive, wireless NPK smart soil probe. Acting as a 24/7 digital clinical monitor for farmland, this meter-long IoT sensor provides growers with a live window into their soil’s hidden chemistry and microclimate.

What is the Teralytic Soil Sensor?

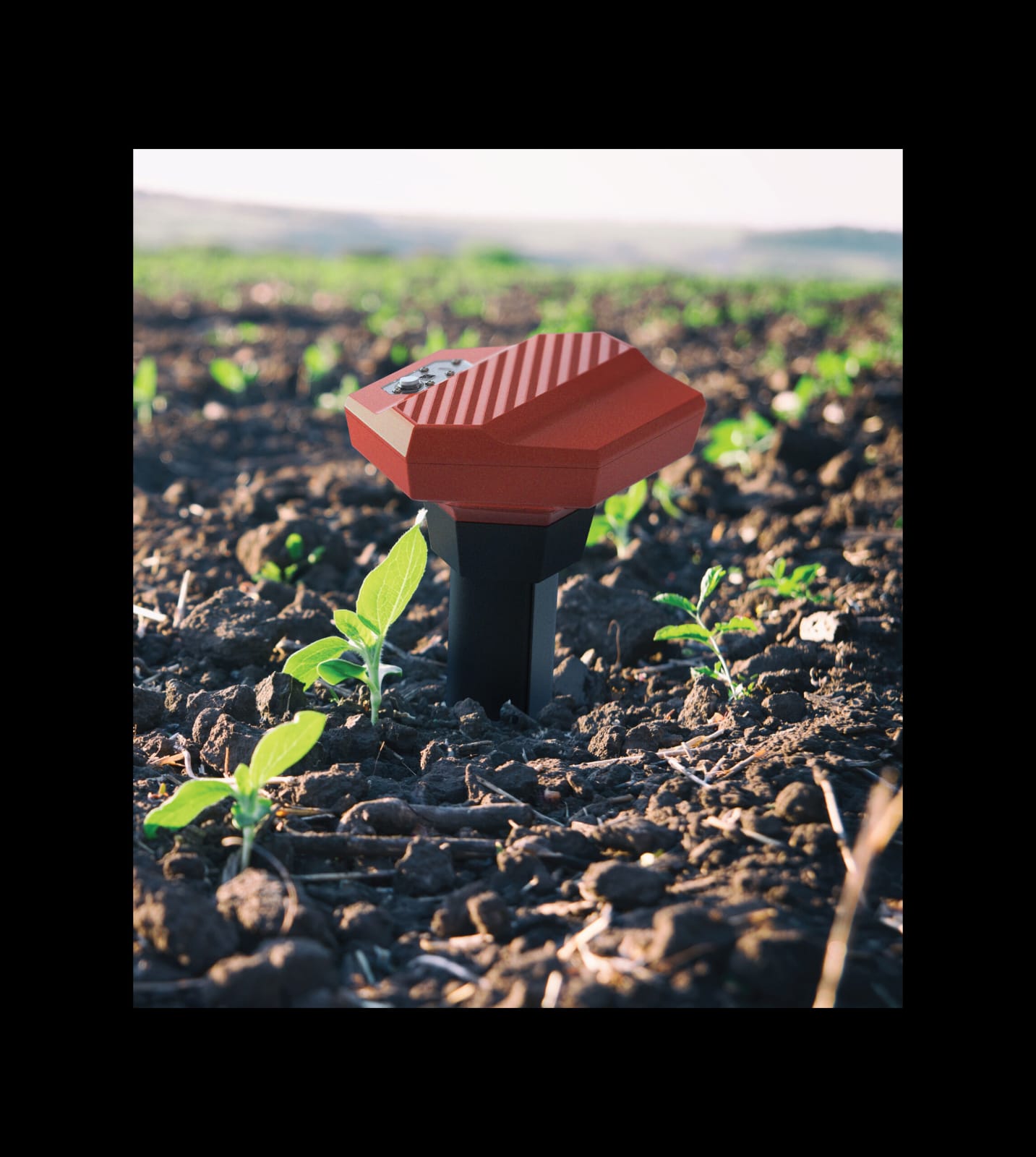

The Teralytic probe is a ruggedized, wire-free, battery-powered device designed to be driven directly into the ground. Divided architecturally into two distinct parts, the probe features a weather-resistant "head" that sits above ground to handle high-cost microclimate electronics and wireless transmission. Below the surface sits an integrated "shaft" housing a dense cluster of 26 specialized sensors.

Unlike standard sensors that only read shallow topsoil data, the Teralytic probe continuously samples the earth at three critical root depths simultaneously:

• 6 Inches: Evaluates the surface and topsoil layer for shallow-rooting crops.

• 12 Inches: Monitors the mid-tier root zone for moderate-to-deep plants.

• 18 Inches: Tracks conditions far below the surface for deep-rooting varieties, shrubs, and orchard trees.

Technical Magic: 26 Sensors, 1 Probe

By gathering data every 15 minutes, the probe compiles an intricate, multi-layered snapshot of the underground environment. It continuously tracks three main categories:

1. Macro-Nutrients (NPK) & Soil Chemistry

Teralytic uniquely integrated chemical sensor cartridges capable of tracking the primary building blocks of plant life across all three depths:

• Nitrate & Ammonium ($N$)

• Phosphate ($P$)

• Potassium ($K$)

• pH Levels & Salinity: Measures soil acidity (2 to 10 pH range) and electrical conductivity to prevent salt toxicity.

2. Soil Gases & Aeration

Roots need to breathe to absorb nutrients efficiently. The probe includes gas sensors that measure Carbon Dioxide ($CO_2$) and Oxygen ($O_2$). Monitoring soil respiration and aeration levels helps growers assess microbial activity and track Soil Organic Carbon (SOC) levels.

3. Microclimate & Moisture

• Below Ground: Measures precise volumetric water content (0% to 50% VWC) and soil temperature.

• Above Ground: The exposed head monitors ambient air temperature, humidity, and ambient light levels (Lux).

Seamless Wireless Architecture

*Field sensors are only as good as their connectivity. Teralytic relies on LoRa (Long Range) wireless technology. This low-power, long-range protocol allows the probes to transmit raw data over several kilometers back to a central farm gateway.

*The gateway then pushes the information to the cloud via cellular, satellite, or standard internet. From there, the data feeds directly into an intuitive, color-coded dashboard accessible from any phone or desktop computer.

Why It’s a Game-Changer for Modern Agriculture

Under traditional soil management, farming is largely reactive, meaning issues are spotted only after crops show visible stress. The Teralytic IoT solution changes this by being completely proactive, using real-time push alerts to warn of underground shifts before plants ever suffer.

Furthermore, traditional methods involve input guesswork, where blanket fertilizer applications frequently lead to chemical run-off and wasted resources. Teralytic introduces surgical precision, enabling farmers to apply the exact amount of NPK needed to maximize fertilizer ROI.

Finally, traditional watering methods present major over-watering risks because of a complete blind spot regarding water movement down the root column. Teralytic excels at leaching prevention by tracking moisture at multiple depths, ensuring over-irrigation doesn't wash valuable nutrients deep past the root zone.

Boosting Profits While Protecting the Planet

Between 70% and 80% of agricultural greenhouse gas emissions stem from the over-production and misapplication of nitrogen fertilizers. By giving farmers an exact, live metric of existing soil fertility, Teralytic stops the cycle of over-fertilization. Farmers cut down on waste, dramatically lower their operational input costs, and protect local water tables from hazardous chemical runoff.

The Verdict

The Teralytic smart probe is shifting agriculture away from standard seasonal assumptions and steering it toward a continuous data-driven stream of truth. By turning the ground beneath our feet into an open book, this IoT innovation ensures farmers can grow more food using fewer resources—making sustainable agriculture genuinely achievable at scale.
